The Ultimate Guide to Budget Security: 4 Camera HD CCTV Set @ 12,500

In an era where security is no longer a luxury but a necessity, the market is flooded with high-end IP systems that can break the bank. However, for small business owners, homeowners, and shopkeepers, the "sweet spot" of surveillance often lies in Analog HD technology.

Today, we are breaking down the components, benefits, and installation of a comprehensive 4-camera setup that costs just 12,500. This isn't just about cameras; it’s about a complete ecosystem that includes the XVR, power supplies, and essential connectors.

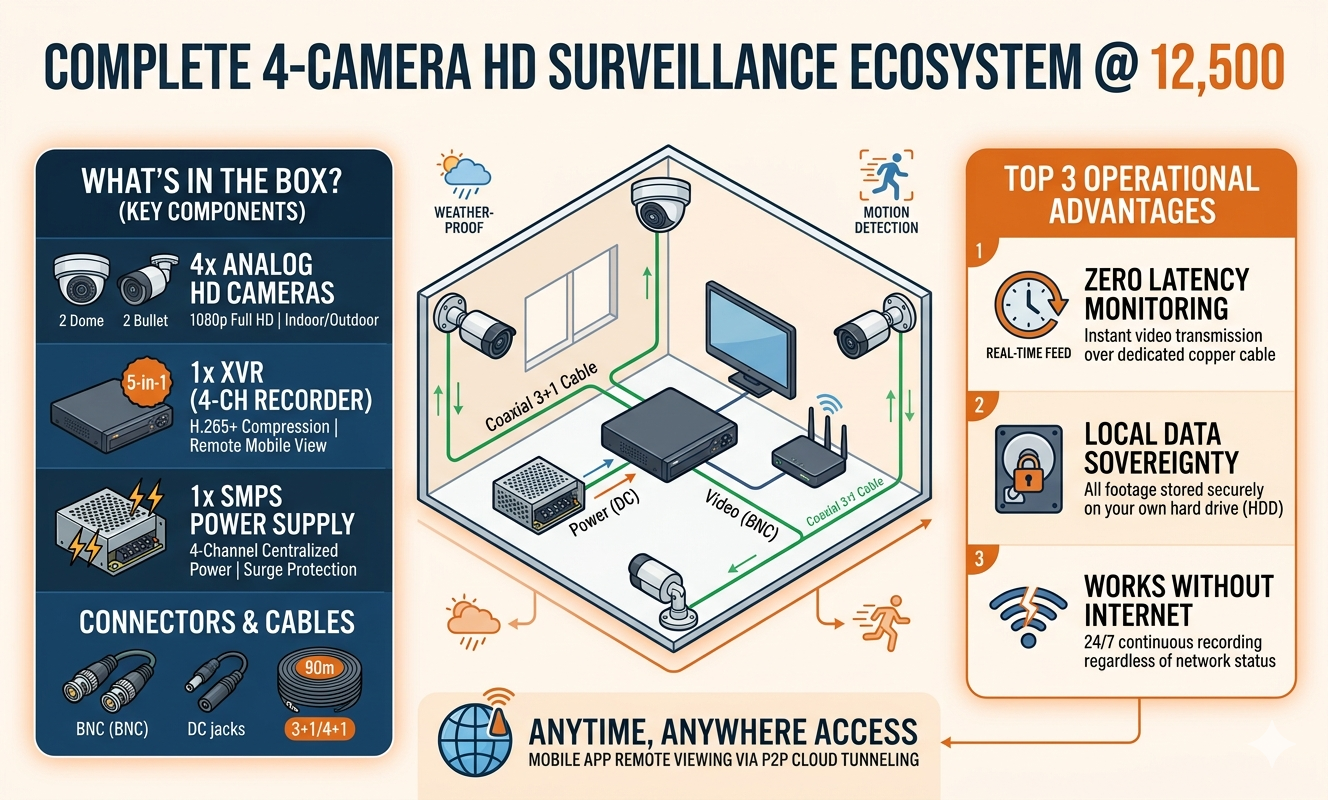

What’s Inside the 12,500 Package?

When you purchase a full kit at this price point, you are getting a "Plug and Play" solution. Here is the typical bill of materials:

1. Analog HD CCTV Cameras (The Eyes)

At the 12,500 price point, you typically receive 2.4 MP (1080p) Full HD cameras.

Dome Cameras: Designed for indoor use. They are discreet and have a wide-angle lens to cover rooms.
Bullet Cameras: Built with IP66 or IP67 weatherproofing for outdoor use. Their "arm" design makes them a great visual deterrent.

2. The XVR (The Brain)

Unlike older DVRs, a modern XVR is "cross-compatible." This means it can handle various signal types.

H.265+ Compression: This is crucial. It shrinks your video files without losing quality, allowing you to store more days of footage on a standard Hard Drive.
Remote Viewing: Most XVRs in 2026 come with cloud P2P support, letting you watch your cameras on your smartphone via an app.

3. SMPS (The Heart)

The Switched Mode Power Supply (SMPS) is a centralized box that takes your home's 220V AC and converts it to a stable 12V DC for the cameras. Using a centralized SMPS is safer than individual adapters because it includes surge protection.

4. BNC & DC Connectors (The Nervous System)

BNC (Bayonet Neill–Concelman): These twist-lock connectors ensure the video signal doesn't drop.

DC Jack: This connects the power wire from your cable to the camera's power port.

Why Choose Analog HD Over IP?

You might wonder why you shouldn't just buy a Wi-Fi camera. While IP cameras have their place, the Analog HD set at 12,500 offers three major advantages:

Zero Latency: The video feed is instant. There is no "lag" or "buffering" because the signal travels over a dedicated copper wire.

Cost-Effectiveness: You get four high-quality "fixed" points of view for the price of one or two high-end IP cameras.

No Internet Required: The system records 24/7 to a local hard drive even if your Wi-Fi goes down.

Step-by-Step Installation Guide

Installing a wired system is simpler than it looks.

Step 1: Positioning

Mount your Bullet cameras at entry points (front door, back gate) and Dome cameras in common areas (living room, cashier counter). Aim for a height of 8–10 feet to prevent tampering.

Step 2: Cabling

Run the 3+1 CCTV cable from the XVR location to each camera. The "3" refers to the thin wires for power and audio, while the "1" is the thick coaxial cable for video.

Step 3: Terminating

Strip the ends of the cables and attach the BNC connectors for video and DC jacks for power.

Pro Tip: Use a waterproof junction box at the camera end to hide the connectors and protect them from rain.

Step 4: Configuration

Connect the XVR to a monitor via HDMI. Follow the startup wizard to set your password and recording schedule (e.g., Motion Detection vs. Continuous Recording).

Maintenance Tips for Longevity

To ensure your 12,500 investment lasts for years, follow these simple steps:

• Clean the Lenses: Use a microfiber cloth every few months to wipe away dust or spider webs.
• Check the SMPS: Ensure the power box is in a ventilated area to prevent overheating.
• HDD Health: Periodically check the XVR menu to ensure the Hard Drive is "Normal" and recording properly.

Is this the right set for you?

This 4-camera set is ideal for:

• Residential Homes: Covering the four corners of a standard plot.
• Retail Shops: Monitoring the entrance, the aisles, and the billing counter.
• Small Offices: Keeping track of employee attendance and sensitive areas.

At 12,500, this package offers the best "Price-to-Security" ratio available in 2026. It provides professional-grade reliability without the professional-grade price tag.

Do you have questions about which brand (Hikvision, CP Plus, or Dahua) fits best within this budget?

Frequently Asked Questions (FAQ)

1. What does "Analog HD" mean compared to old CCTV systems?

Legacy analog systems (CVBS) were limited to standard definition (roughly 480p), resulting in grainy, "pixelated" footage. Analog HD (AHD/TVI/CVI) uses the same coaxial infrastructure but employs advanced modulation to transmit 1080p Full HD signals. This allows for high-definition facial recognition and license plate capture without the high cost of IP-based networking.

2. Can I view these cameras on my phone if I am away from home?

Yes. While the system records locally to an XVR, the recorder features an Ethernet port. By connecting it to your router, you can use a dedicated mobile app (via P2P Cloud technology) to stream live footage and playback recordings from anywhere in the world, provided you have an internet connection on both ends.

3. Does the 12,500 package include a Hard Drive?

Typically, at the 12,500 price point, the Hard Drive (HDD) is sold separately. This is because storage requirements vary based on the user's needs. A 1TB Surveillance Grade HDD usually provides 15–20 days of continuous recording for 4 cameras using H.265+ compression.

4. What is the difference between a Dome and a Bullet camera?

The difference is primarily in the form factor and environmental rating:

• Dome Cameras: Designed for indoor aesthetics. They are "vandal-resistant" because their shape makes it difficult for an intruder to move the camera by hand.
• Bullet Cameras: Designed for outdoor perimeters. They feature an extended housing (visor) to protect the lens from sun glare and rain, and they are usually IP66 or IP67 weather-rated.

5. Why is an SMPS better than individual power adapters?

An SMPS (Switched Mode Power Supply) acts as a centralized power hub. It is more efficient, produces less heat, and includes built-in surge protection. If a power spike occurs, the SMPS protects the cameras from frying. It also makes for a much cleaner installation with fewer wires dangling near your power outlets.

6. Can I mix and match different camera brands with the XVR?

Yes. Modern XVRs are "Pentabrid" or "5-in-1" devices. They support the five major signal types: AHD, TVI, CVI, CVBS, and IP. This cross-compatibility ensures that if you decide to add a different brand's camera later, it will likely be "plug-and-play" compatible.

7. How far can I run the cable without losing video quality?

For the 3+1 Coaxial cable provided in this kit, you can safely run up to 300 meters without significant signal degradation. For distances beyond 500 meters, specialized video baluns or active signal repeaters would be required to maintain 1080p clarity.

8. Does this system record audio?

Most standard 12,500 kits focus on video. However, many modern Analog HD cameras now feature AoC (Audio over Coax) technology. This allows the camera to send audio signals through the same BNC cable without extra wiring. Check if your specific kit supports "Audio over Coax" if sound recording is a priority.

9. What happens when the Hard Drive is full?

The XVR is designed for Cyclic Recording. Once the storage reaches capacity, the system automatically overwrites the oldest footage with the newest data. You never have to manually delete files to make room for new recordings.

10. How difficult is the DIY installation for this kit?

If you can use a power drill and strip a wire, you can install this kit. The most time-consuming part is routing the cables from the cameras back to the XVR. The connections themselves are simplified: the BNC twists into place, and the DC Jack plugs directly into the camera's power pigtail.

Security technology is rapidly developing in Nepal, as fast as more homes, office buildings, hospitals, hotels, warehouses, factories, and commercial buildings moving towards smart security solutions. People now prefer a more easier to control, more accurate, and less time-consuming system to maintain. One of the latest innovations supporting this change is PTRZ CCTV Technology. Unlike traditional CCTV cameras that need manual adjustments after installation, PTRZ cameras allow users to install camera themselves. Installer can adjust the viewing angle, zoom, rotation, and tilt remotely through software or mobile application. This help to make the setup process easier, reduces need for physical handling, and improves overall monitoring accuracy.

As the demand for advanced CCTV cameras in Nepal continues to grow; and leading CCTV manufacturers such as Hikvision and Dahua Technology are introducing modern solutions of PTRZ camera solutions for improved security performance. These cameras are built to make installation fast, reduce maintenance effort, and to offer a flexible surveillance options for different environments. PTRZ technology offers better image quality, remote control features, and smart monitoring, as this makes it a practical choice for both homes and commercial security systems in Nepal.

What is PTRZ CCTV Technology?

PTRZ CCTV Technology is an advanced surveillance solution that is designed to make camera installation and adjustment easier. The PTRZ camera features a smart dome design with a transparent cover, which can also change viewing angle, zoom, and position without opening the camera. This 5-axis adjustment system reduces installation time, avoids dust contamination, and makes it accurate to set up for both; day and night monitoring. It is also cost-effective, as it reduces labor work and maintenance efforts; making it suitable even for small businesses.

PTRZ cameras are usually installed in public spaces, buildings, traffic, and commercial areas for monitoring. They're equipped with security features such as high-definition video, night vision, and motion detector for better security. One of the major advantage is remote control, which allows users to make adjustments and monitor movements from any location. For more advanced security requirements, many newer PTRZ systems include smart features such as facial recognition and behavior analysis.

Key Features of PTRZ CCTV Cameras

Nepal's modern PTRZ CCTV cameras meet various requirements of a modern society, such as making surveillance smarter, easier, and reliable. They help improve faster installation, reduce manual effort, and maintenance work. These cameras come with advanced features and AI support; providing better security coverage for home, office, and businesses.

• Quick Installation with Remote Setup

PTRZ cameras allow fast installation because most adjustments can be done remotely after mounting. No need for the installers to constantly open or move the camera physically. This can save time, reduces labor effort, and makes large security projects much more efficient.

• Five-Axis Adjustment

The five-axis system allows to precisely adjust the camera angle including pan, tilt, rotate, and zoom functions. This helps in achieving perfect coverage of the required area without any manual readjustment. It enhances the accuracy and reduces blind spots in surveillance.

• Smart AI Detection

PTRZ cameras comes with intelligent AI features that can detect humans, vehicles, motion, and suspicious activity. Smart alerts help minimize false the alarms and enhance real-time security response, as it makes monitoring easier and more accurate.

• Brand-New Socket Design

The new socket design improves installation stability and connection safety. It makes wiring smooth and reduces the risk of connection loss during setup. This design will also makes maintenance easier and more secure over time.

• High-Quality Video

These cameras also supports high-resolution recording; generally from 2MP to 8MP Ultra HD. This ensures clear and detailed footage for identifying faces, objects, and incidents. Better video quality improves overall surveillance accuracy.

• Weatherproof Design

PTRZ cameras are built with high weather protection such as IP camera housing. They are resistant to rain, dust, heat, and even the harsh weather conditions. This makes PTRZ cameras ideal for long-term outdoor installation.

• Night Vision Technology

These cameras include infrared and smart night vision features for clear monitoring in darkness. They maintain continuous surveillance even in the low light or in the no-light environments. PTRZ cameras guarantees constant security without any disruptions.

PTRZ vs PTZ: What’s the Difference?

It is often common for many people to get confused when comparing PTRZ vs PTZ because both technologies are used in modern CCTV surveillance system and also sounds very similar. However, they are designed for completely different purposes in security systems. It's important for users to know the difference; when choosing cameras based on their monitoring requirements. Both offer advanced features, but their usage and function are not the same.

Popular Brands Offering PTRZ CCTV Cameras

Several global CCTV manufacturers are now offering the advanced PTRZ CCTV camera in Nepal. They are especially designed for easier installing, remote adjustment, and smarter surveillance. Among them, Hikvision and Dahua Technology are the well-known and most trusted brands. These are mainly used in both commercial and residential security systems. It is because of their functions such as reliability, advanced AI features, and high image quality.

1. Dahua

Dahua Technology also offers advanced PTRZ cameras, particularly under its WizMind and PTZ/PTRZ hybrid series. In the field of AI technology, Dahua PTRZ models are known for their strong AI features. They are also highly efficient when it comes to capturing high-quality images and functioning even in harsh outdoor spaces. This model includes 4MP resolution, 4x optical zoom, vehicle detection, smart illumination, face recognition, and IP67 weatherproof protection. It is widely used in enterprises, parking areas, and commercial structures.

Popular Dahua PTRZ Model:

 • 4MP 4× Starlight+ Smart Dual Illumination Network PTRZ Camera

2. Hikvision

Popular Hikvision PTRZ Models:

• 4MP AcuSense PTRZ Varifocal Dome Network Camera

 • 8MP AcuSense PTRZ Varifocal Dome Network Camera

 • 4MP ColorVu PTRZ Dome Camera

 • 8MP ColorVu PTRZ Dome Camera

 • DeepinView AI PTRZ Smart Dome Camera

 • Pro Series PTRZ / Smart Hybrid Dome Camera

Benefits of Using PTRZ Cameras

There are several reasons why businesses and homeowners in Nepal are making the switch to the PTRZ CCTV system. These cameras are designed to make the installation easier, improve monitoring accuracy, and to minimize maintenance efforts. With remote adjustment and smart features of PTRZ technology, it provide a more efficient and modern security solution.

• Saves Maintenance Costs

Maintenance becomes easier and more cost-effective with PTRZ cameras. Any future changes in angle or zoom can be remotely adjusted using software. This removes the need for manual servicing, reduces labor costs, and improves more efficiency for the system in the future.

• Better Camera Accuracy

PTRZ systems allow precise adjustment of viewing angles, zoom, and direction. Installers can customize coverage area to remove blind spots and enhance the quality of monitoring. This will provide more reliable surveillance in commercial and residential environments.

• Faster Setup

Large CCTV installations can be completed much faster with PTRZ technology. Since most adjustments are done remotely, technicians save significant time during setup. This is especially helpful for projects involving multiple cameras across large areas.

• Improved Security

Some of the AI-based detection features found in some PTRZ cameras that enhance security performance of the camera. They can detect human movement, vehicles, and unusual activity while minimizing false alarms. This will not only enable faster response but also improve protection.

• Ideal for Hard to Reach Areas

PTRZ cameras are perfect for locations where physical access is difficult. They work well in high ceilings, warehouses, outdoor poles, and parking areas. Remote adjustment removes the need for risky manual camera handling in such locations.

• Professional Monitoring Experience

PTRZ systems provide a cleaner installation setup with better flexibility and easier management. Users get smoother control, improved coverage, and smarter surveillance performance. This make them appropriate for modern security requirements.

Why Choose First Aid Nepal for Complete CCTV Solutions?

Choosing the best supplier for PTRZ CCTV in Nepal is important; for getting reliable and long-lasting CCTV performance. First Aid Nepal provide complete CCTV solutions; with professional guidance, quality products, and trusted installation service throughout Nepal. They are mainly focused about safety and long-term home and business customer service.

• Experienced Technical Team

First Aid Nepal has experienced and qualified engineers in the installation of CCTV, which is done with a proper planning and accuracy. We make sure the camera is positioned properly and the system is installed correctly; so that to provide maximum protection.

• Professional Consultation Before Purchase

Proper guidance given to the customers before they purchase CCTV systems. Our team provides valuable input into selecting the appropriate camera based on the location, budget, and security requirements for the best decision-making and for long-term customer satisfaction.

• AMC and Long-Term Support

We offer Annual Maintenance Contract (AMC) services that guarantee long-term system maintenance. This helps to keep CCTV systems working, updated, and in good condition while in operation.

• Reliable After-Sales Service

There is good after sale service for installing the system, servicing, and upgrading. This guarantees smooth functioning and reliability in the long-term use of the CCTV system.

Conclusion

The use of PTRZ CCTV Technology is becoming an important part of the modern security system. With features such as remote control, 5-axis control, AI detection, and simple installation provide a smarter and flexible way to manage surveillance. The PTRZ systems are quick to install, cost effective and more accurate in home, office and commercial building monitoring in comparison to traditional cameras.

In the market of advanced security, the demand for advanced security is continuously increasing; and PTRZ cameras from brands such as Hikvision and Dahua are offering reliable solutions for various environments. They are suitable for both little and large-scale installments, making them practical choice for modern users. If you are interested in finding out more about security systems, read our other blogs as well.

FAQ for PTRZ CCTV Technology

• How is PTRZ different from normal CCTV cameras?

Typically, manual adjustments must be made after installing a normal CCTV camera. PTRZ cameras can be controlled remotely via software or apps for pan, tilt, rotate, and zoom. This help in simplifying installation and reduces maintenance effort. It is particularly in challenging areas such as ceilings, poles, or outdoor spaces.

• Is PTRZ better than PTZ cameras?

It depends on the purpose, as PTRZ cameras are better for fixed surveillance areas; where remote setup adjustment is needed. PTZ cameras are better for live tracking and continuous movement monitoring. PTRZ systems are usually simpler and more affordable for regular security setups.

• Where can PTRZ CCTV cameras be used?

PTRZ cameras can be used in various areas. It can be used at homes, offices, schools, hospitals, parking areas, shopping centers, warehouses, hotels and factories. They are particularly effective when physical positioning of the camera is difficult once installed, such as in hard to access areas.

• How to Set Up a PTRZ CCTV Camera System?

First, the camera is mounted in the desired location. Then installers connect it to the NVR or monitoring software. They can control the pan, tilt, rotate, or zoom function only using remote controls or software settings. This simplifies the setup process and improves its accuracy.
